ORD-H series rotary honeycomb dehumidifiers are mainly used to dry hygroscopic engineering plastics or regrind materials. Under ideal conditions, the dew-point of dehumidified dry air can be lower than -40oC, the largest of which can provide dry air up to a quantity of 4,000 m3/hr.

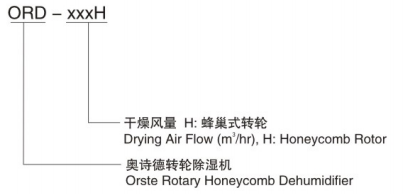

189-4860-6110 / 0769-82020256 Online consultationNaming Principle
Features
1.P.I.D temperature controller to accurately control regenerative temperature.
2.Adopt Japan Nichias molecular sieve honeycomb rotor which ensures good stable dehumidifying effect.
3.Detachable cooler is equipped for over-sized model, easy for maintenance and keeps a low return air temperature.
4.High density return air filter ensures no contamination to the honeycomb.
5.Temperature indication function for dehumidified outlet air temperature.
6.Efficient oil filter is optional, 99% of oil can be removed, thus product quality can be greatly improved.
7.Dew point of air after dehumidified can be lower than -40oC.
8.For Models below ORD-400H, air-cooling is optional ensures low energy consumption and high efficiency.
APPLICATION
ORD-H series rotary honeycomb dehumidifiers are mainly used to dry hygroscopic engineering plastics or regrind materials. Under ideal conditions, the dew-point of dehumidified dry air can be lower than -40oC, the largest of which can provide dry air up to a quantity of 4,000 m3/hr.

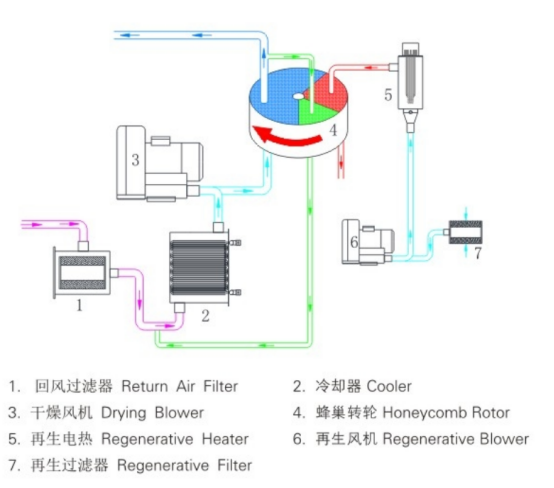

Functional Scheme

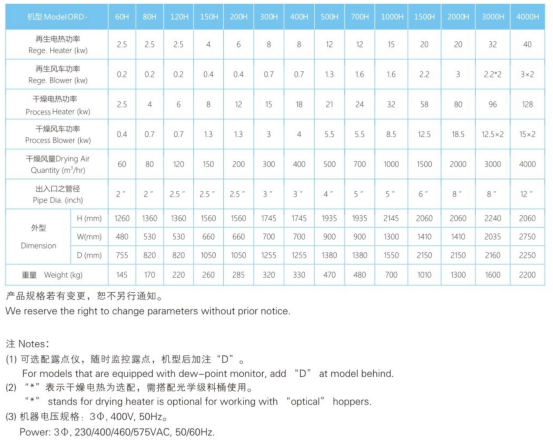

Parameters
